昨天在改项目的时候,看到人物头像是圆形的，我就想到用UGUI的Mask组件，但是我试了一下，效果不是很好,而且性能上也不是很理想，所以我就找到一个比较好的解决办法，之前也考虑过用Image上的Material去弄，但是也不是很完美，后来看到一篇文章，说是重写Image组件，所以就有了下面我要提到的东西（只支持53版本以上）。
首先需要重写Image，由于继承UnityEngine基类的派生类不能在Inspector里显示自定义参数。所以我们要新建BaseImage类来代替Image类。原Image源码有近千行代码，BaseImage对其进行了部分精简，只支持Simple Image Type，并去掉了eventAlphaThreshold的相关代码。经过删减，得到一个百行代码的BaseImage类，精简版Image就完成了。文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 |
using System; using UnityEngine; using System.Collections; using UnityEngine.Serialization; using UnityEngine.UI; public class BaseImage : MaskableGraphic,ISerializationCallbackReceiver, ILayoutElement, ICanvasRaycastFilter { // Use this for initialization void Start () { } // Update is called once per frame void Update () { } [FormerlySerializedAs("m_Frame")] [SerializeField] private Sprite m_Sprite; public Sprite sprite { get { return m_Sprite; } set { if (SetPropertyUtilityExt.SetClass(ref m_Sprite, value)) SetAllDirty(); } } [NonSerialized] private Sprite m_OverrideSprite; public Sprite overrideSprite { get { return m_OverrideSprite == null ? sprite : m_OverrideSprite; } set { if (SetPropertyUtilityExt.SetClass(ref m_OverrideSprite, value)) SetAllDirty(); } } /// <summary> /// Image's texture comes from the UnityEngine.Image. /// </summary> public override Texture mainTexture { get { return overrideSprite == null ? s_WhiteTexture : overrideSprite.texture; } } public float pixelsPerUnit { get { float spritePixelsPerUnit = 100; if (sprite) spritePixelsPerUnit = sprite.pixelsPerUnit; float referencePixelsPerUnit = 100; if (canvas) referencePixelsPerUnit = canvas.referencePixelsPerUnit; return spritePixelsPerUnit / referencePixelsPerUnit; } } /// <summary> /// 子类需要重写该方法来自定义Image形状 /// </summary> /// <param name="vh"></param> protected override void OnPopulateMesh(VertexHelper vh) { base.OnPopulateMesh(vh); } #region ISerializationCallbackReceiver public void OnAfterDeserialize() { } // // 摘要: // Implement this method to receive a callback after unity serialized your object. public void OnBeforeSerialize() { } #endregion #region ILayoutElement public virtual void CalculateLayoutInputHorizontal() { } public virtual void CalculateLayoutInputVertical() { } public virtual float minWidth { get { return 0; } } public virtual float preferredWidth { get { if (overrideSprite == null) return 0; return overrideSprite.rect.size.x / pixelsPerUnit; } } public virtual float flexibleWidth { get { return -1; } } public virtual float minHeight { get { return 0; } } public virtual float preferredHeight { get { if (overrideSprite == null) return 0; return overrideSprite.rect.size.y / pixelsPerUnit; } } public virtual float flexibleHeight { get { return -1; } } public virtual int layoutPriority { get { return 0; } } #endregion #region ICanvasRaycastFilter public virtual bool IsRaycastLocationValid(Vector2 screenPoint, Camera eventCamera) { return true; } #endregion } |
然后,开始写CricleImage类，Image类继承自MaskableGraphic，实现了ISerializationCallbackReceiver, ILayoutElement, ICanvasRaycastFilter这三个接口。最关键的是MaskableGraphic类，MaskableGraphic负责绘制逻辑，MaskableGraphic继承自Graphic，Graphic里有个OnPopulateMesh函数，这正是我们需要的函数。文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
UI元素生成顶点数据时会调用OnPopulateMesh(VertexHelper vh)函数，我们只要继承改写OnPopulateMesh函数，将原先的矩形顶点数据清除，改写入圆形顶点数据，这样渲染出来的自然是圆形图片。文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 |

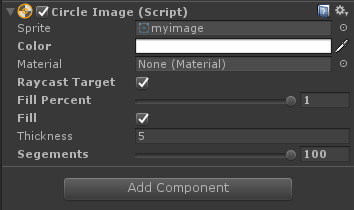

using System.Collections.Generic; using UnityEngine; using UnityEngine.UI; using UnityEngine.Sprites; [AddComponentMenu("UI/Circle Image")] public class CircleImage : BaseImage { // Use this for initialization void Awake() { innerVertices = new List<Vector3>(); outterVertices = new List<Vector3>(); } // Update is called once per frame void Update() { this.thickness = (float)Mathf.Clamp(this.thickness, 0, rectTransform.rect.width / 2); } [Tooltip("圆形或扇形填充比例")] [Range(0, 1)] public float fillPercent = 1f; [Tooltip("是否填充圆形")] public bool fill = true; [Tooltip("圆环宽度")] public float thickness = 5; [Tooltip("圆形")] [Range(3, 100)] public int segements = 20; private List<Vector3> innerVertices; private List<Vector3> outterVertices; protected override void OnPopulateMesh(VertexHelper vh) { vh.Clear(); innerVertices.Clear(); outterVertices.Clear(); float degreeDelta = (float)(2 * Mathf.PI / segements); int curSegements = (int)(segements * fillPercent); float tw = rectTransform.rect.width; float th = rectTransform.rect.height; float outerRadius = rectTransform.pivot.x * tw; float innerRadius = rectTransform.pivot.x * tw - thickness; Vector4 uv = overrideSprite != null ? DataUtility.GetOuterUV(overrideSprite) : Vector4.zero; float uvCenterX = (uv.x + uv.z) * 0.5f; float uvCenterY = (uv.y + uv.w) * 0.5f; float uvScaleX = (uv.z - uv.x) / tw; float uvScaleY = (uv.w - uv.y) / th; float curDegree = 0; UIVertex uiVertex; int verticeCount; int triangleCount; Vector2 curVertice; if (fill) //圆形 { curVertice = Vector2.zero; verticeCount = curSegements + 1; uiVertex = new UIVertex(); uiVertex.color = color; uiVertex.position = curVertice; uiVertex.uv0 = new Vector2(curVertice.x * uvScaleX + uvCenterX, curVertice.y * uvScaleY + uvCenterY); vh.AddVert(uiVertex); for (int i = 1; i < verticeCount; i++) { float cosA = Mathf.Cos(curDegree); float sinA = Mathf.Sin(curDegree); curVertice = new Vector2(cosA * outerRadius, sinA * outerRadius); curDegree += degreeDelta; uiVertex = new UIVertex(); uiVertex.color = color; uiVertex.position = curVertice; uiVertex.uv0 = new Vector2(curVertice.x * uvScaleX + uvCenterX, curVertice.y * uvScaleY + uvCenterY); vh.AddVert(uiVertex); outterVertices.Add(curVertice); } triangleCount = curSegements * 3; for (int i = 0, vIdx = 1; i < triangleCount - 3; i += 3, vIdx++) { vh.AddTriangle(vIdx, 0, vIdx + 1); } if (fillPercent == 1) { //首尾顶点相连 vh.AddTriangle(verticeCount - 1, 0, 1); } } else//圆环 { verticeCount = curSegements * 2; for (int i = 0; i < verticeCount; i += 2) { float cosA = Mathf.Cos(curDegree); float sinA = Mathf.Sin(curDegree); curDegree += degreeDelta; curVertice = new Vector3(cosA * innerRadius, sinA * innerRadius); uiVertex = new UIVertex(); uiVertex.color = color; uiVertex.position = curVertice; uiVertex.uv0 = new Vector2(curVertice.x * uvScaleX + uvCenterX, curVertice.y * uvScaleY + uvCenterY); vh.AddVert(uiVertex); innerVertices.Add(curVertice); curVertice = new Vector3(cosA * outerRadius, sinA * outerRadius); uiVertex = new UIVertex(); uiVertex.color = color; uiVertex.position = curVertice; uiVertex.uv0 = new Vector2(curVertice.x * uvScaleX + uvCenterX, curVertice.y * uvScaleY + uvCenterY); vh.AddVert(uiVertex); outterVertices.Add(curVertice); } triangleCount = curSegements * 3 * 2; for (int i = 0, vIdx = 0; i < triangleCount - 6; i += 6, vIdx += 2) { vh.AddTriangle(vIdx + 1, vIdx, vIdx + 3); vh.AddTriangle(vIdx, vIdx + 2, vIdx + 3); } if (fillPercent == 1) { //首尾顶点相连 vh.AddTriangle(verticeCount - 1, verticeCount - 2, 1); vh.AddTriangle(verticeCount - 2, 0, 1); } } } public override bool IsRaycastLocationValid(Vector2 screenPoint, Camera eventCamera) { Sprite sprite = overrideSprite; if (sprite == null) return true; Vector2 local; RectTransformUtility.ScreenPointToLocalPointInRectangle(rectTransform, screenPoint, eventCamera, out local); return Contains(local, outterVertices, innerVertices); } private bool Contains(Vector2 p, List<Vector3> outterVertices, List<Vector3> innerVertices) { var crossNumber = 0; RayCrossing(p, innerVertices, ref crossNumber);//检测内环 RayCrossing(p, outterVertices, ref crossNumber);//检测外环 return (crossNumber & 1) == 1; } /// <summary> /// 使用RayCrossing算法判断点击点是否在封闭多边形里 /// </summary> /// <param name="p"></param> /// <param name="vertices"></param> /// <param name="crossNumber"></param> private void RayCrossing(Vector2 p, List<Vector3> vertices, ref int crossNumber) { for (int i = 0, count = vertices.Count; i < count; i++) { var v1 = vertices[i]; var v2 = vertices[(i + 1) % count]; //点击点水平线必须与两顶点线段相交 if (((v1.y <= p.y) && (v2.y > p.y)) || ((v1.y > p.y) && (v2.y <= p.y))) { //只考虑点击点右侧方向，点击点水平线与线段相交，且交点x > 点击点x，则crossNumber+1 if (p.x < v1.x + (p.y - v1.y) / (v2.y - v1.y) * (v2.x - v1.x)) { crossNumber += 1; } } } } } |
最后,还有一个辅助类文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 |
using UnityEngine; internal static class SetPropertyUtilityExt { public static bool SetColor(ref Color currentValue, Color newValue) { if (currentValue.r == newValue.r && currentValue.g == newValue.g && currentValue.b == newValue.b && currentValue.a == newValue.a) return false; currentValue = newValue; return true; } public static bool SetStruct<T>(ref T currentValue, T newValue) where T : struct { if (currentValue.Equals(newValue)) return false; currentValue = newValue; return true; } public static bool SetClass<T>(ref T currentValue, T newValue) where T : class { if ((currentValue == null && newValue == null) || (currentValue != null && currentValue.Equals(newValue))) return false; currentValue = newValue; return true; } } |
上面就是所有代码了，上面还加入了圆形区域的点击检测，是通过Ray-Crossing算法判断的，也就是由这个点发射一条射线与多边形相交，如果交点是奇数，说明在多边形内，如果是偶数个就是在多边形外面。下面是package包，有需要的去下载吧。文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
下载链接: https://pan.baidu.com/s/1ik-LJtdJDvC8SpMtGncGqQ 提取码: hxku文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
顺便提一下我找到新工作了，感觉还不错，最近还没找到房子，所以现在更新的少了，等找到房子后会及时更新的。文章源自大腿Plus-https://www.zhaoshijun.com/archives/458 文章源自大腿Plus-https://www.zhaoshijun.com/archives/458
